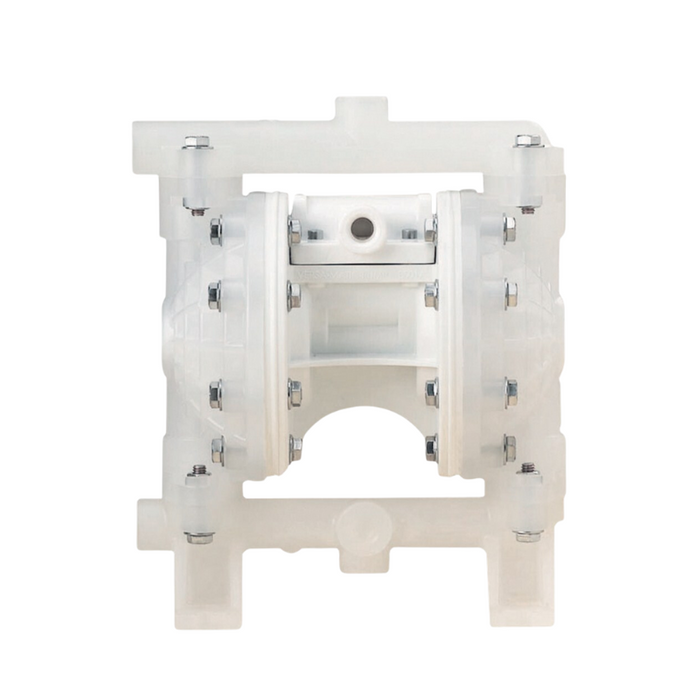

Diaphragm Pump Air Op. 1/2"
Stock Code:
LUBDDP13
Stock Level:
Available to Order
DESCRIPTION: AIR OPERATED DIAPHRAGM PUMP - 1/2" | The DDP13 offers an economical fluid transfer option where medium to high flow rates are needed with little back-pressure. The ability to dry-run allows easy priming while operating without any damage to the pump. A removable air valve offers repairs to be made while the pump is still fitted in place for quick simple maintenance. Multi-ported inlet and outlet manifolds offer a variety of options when making fluid connections. The all Polypropylene body allows this pump to be used with a range of compatible chemicals as well as the new or used oils and engine coolants (RTU), diesel or oily water applications. Fully repairable and spare parts are readily available. Not suitable for flammable liquids. Macnaught Advantage 2-Year warranty for manufactured components and 1-Year warranty on wear components.TECHNICAL SPECIFICATIONS: Maximum Air Pressure: 690kPa (100psi) | Inlet / Outlet Ports: 1/2" NPT(F) | Air Inlet Size/Type: 3/8" NPT(F) | Maximum Flow Rate: 42 L/min (viscosity dependant) | Suction Lift: 3.6m (dry) / 9.1m (wet) | Maximum Solids Handling: 1.6mm (0.0625") | Fluid temperature range: 0ºC - 82ºC | Maximum noise level: 86 dB(A) | Fluid Compatability: Oils (new & used), Engine Coolants RTU (new & used), oily water, Diesel | Wetted Components: Polypropylene (body & valve seats), Buna N (diaphragms), Acetal (check valves) PACKAGE INCLUDES: DDP13 Air-Operated Double Diaphragm Pump 1/2" ported + Air Exhaust Muffler 3/8" NPT(M) + Instruction Manual
Contact us if you require a quote for the above item or have specific delivery requirements.
