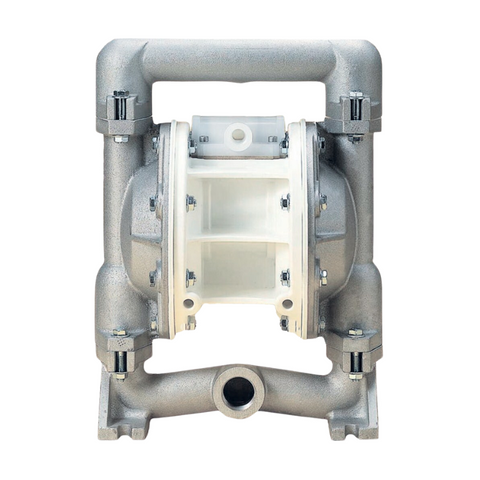

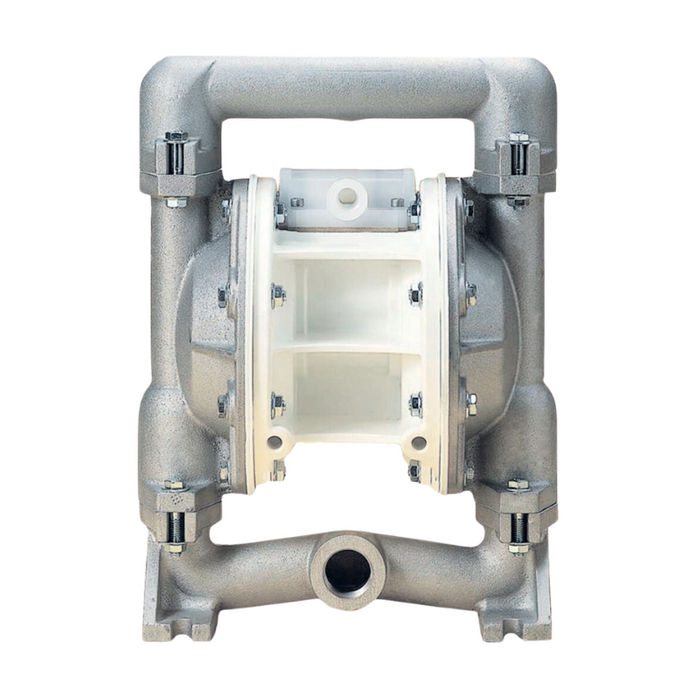

Pneumatic Diaphragm Pump 1 BSP
Stock Code:
LUBDDP25
Stock Level:
Available to Order
DESCRIPTION: The DDP25 offers an economical fluid transfer option where medium to high flow rates are needed with little back-pressure. The ability to dry-run allows easy priming while operating without any damage to the pump. A removable air valve offers repairs to be made while the pump is still fitted in place for quick simple maintenance. The Polypropylene / Aluminium body allows this pump to be used with a range of compatible chemicals as well as the new or used oils and engine coolants (RTU), diesel or oily water applications. Fully repairable and spare parts are readily available. Not suitable for flammable liquids. TECHNICAL SPECIFICATIONS: Maximum Air Pressure: 690kPa (100psi) | Inlet / Outlet Ports: 1" BSP(F)| Air Inlet Size/Type: 1/2" NPT(F) | Maximum Flow Rate: 174 L/min (viscosity dependant) | Suction Lift: 4.9m (dry) / 9.4m (wet) | Maximum Solids Handling: 3.2mm (0.125") | Fluid temperature range: -23ºC - 88ºC | Maximum noise level: 93 dB(A) | Fluid Compatability: Oils (new & used), Engine Coolants RTU (new & used), oily water, diesel | Wetted Components: Aluminium/Polypropylene (body), Aluminium (valve seats), Buna N (diaphragms), Acetal (check valves) PACKAGE INCLUDES: DDP25 Air-Operated Double Diaphragm Pump 1" ported + Air Exhaust Muffler 1/2" NPT(M) + Instruction Manual
Contact us if you require a quote for the above item or have specific delivery requirements.
